BenQ W1120 sales have been high in household market, and this evaluation is its latest upgrade W1130. In fact, BenQ’s entry home W series has been widely praised. In addition to the W1120 we mentioned, there is a classic BenQ W1070 and W1110, etc. “May Inheritance” can be well placed with the process of continuously upgraded. BenQ’s latest W1130 continues the advantages of color on the basis, while adding a lot of new features.

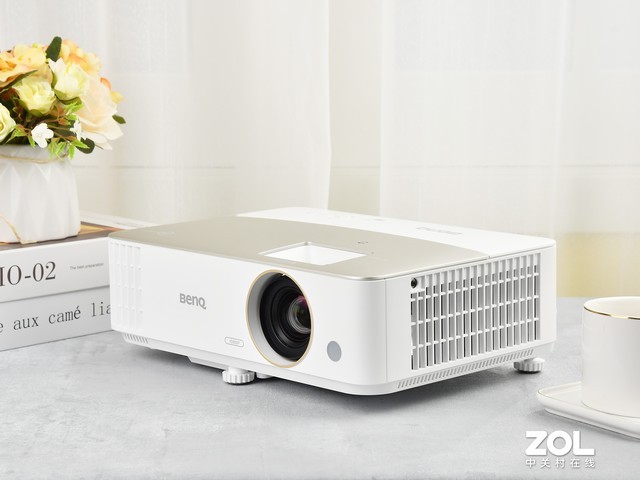

BenQ W1130
BenQ W1130 has 95% of the color gamut characteristics of REC.709, and the BenQ W1130 also supports HDR function. Many video websites support HDR function, so this high dynamic contrast effect is significant. The color advantage is the typical characteristics of this product.
BenQ W1130 also has a 2D Keystone function. 2D Keystone can adjust the trapezoidal effect of the picture, and the side investment is more convenient. At the same time, BenQ W1130 short focus matching large zoom lens allows installation to become more simple, especially in a house with limited space. BenQ W1130 uses a 1.3X large zoom lens, short-range projection large screen.
BenQ W1130 uses 1.3X large zoom lens
2D Keystone can adjust the trapezoidal effect of the picture is more convenient
BenQ W1130 also has a ambient light sensor that can sense the ambient light around the projection. Whether it is day or night, BenQ W1130 can adapt to the surrounding environment by adjusting the brightness of the picture, allowing the viewer to have a better visual effect.
Let’s take a look at the effect of BenQ W1130.
Design
The design of the BenQ W1130 continues the style of the W series, the top design uses color matching style, more fashionable, with rounded design, product appears to be bead Yu Run, is ideal for a variety of home environment. BenQ W1130 weighs 2.79 kg, lightweight body, whether it is lifting or placed on the table, will not occupy too much space.
BenQ W1130 uses color matching design more fashion
The interface of the BenQ W1130 is also rich enough, two HDMI interfaces with TV boxes or set-top boxes, and game hosts, it is very convenient to use it when used. BenQ W1130 is equipped with VGA interfaces, although the home is not used many times, there is no problem with the old-fashioned PC host.
BenQ W1130 body weight is 2.79 kg
BenQ W1130 interface is rich enough
HDMI interface upgrade to version 2.0
At the same time, it is important to note that the HDMI interface version of BenQ W1130 is upgraded from 1.4 to 2.0. This makes better support to parse 4K resolution and have better video fluency. And the high version of the interface is also active for supporting a broader color gamut range.
The lens of BenQ W1130 is a highlight. Its projection ratio is 1.127-1.46, while the zoom ratio is 1.3X, the short focus is equipped with zoom, which can accommodate more living room environments. 2.5 meters can take a hundred-inch picture, for the general family, such space needs are no problem.

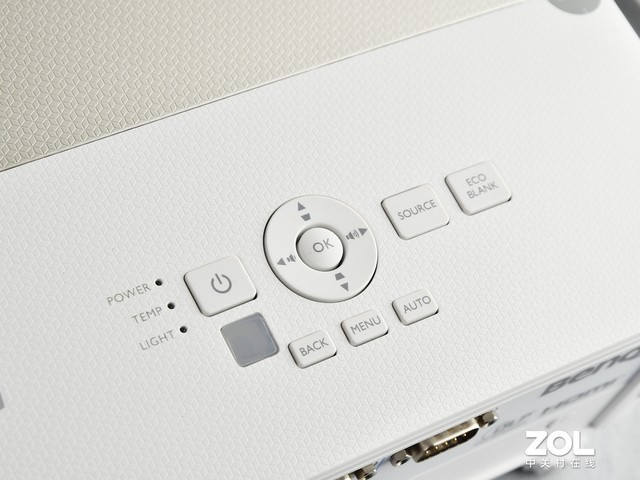

BenQ W1130 Fire Button
BenQ W1130 back light sensor and translucent lens

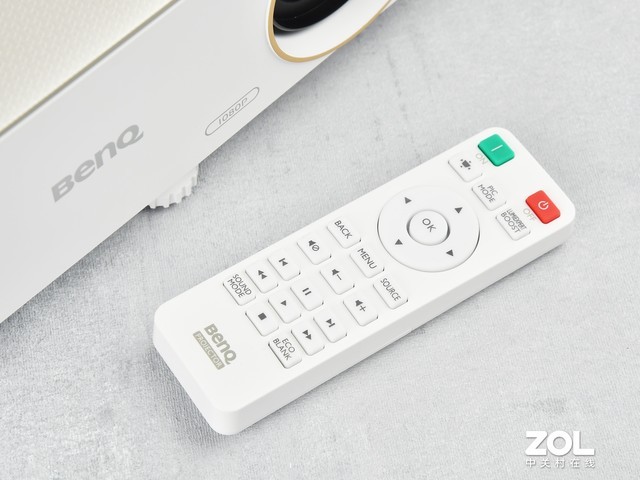

BenQ W1130 remote control
Good music effect
BenQ W1130’s remote control is very small, white design is sufficient, but the button is designed and there is no learning cost. In addition, the sound efficiency of the BenQ W1130 is also worth mentioning. The Trevolo speaker carefully made from the BenQ professional engineer team, with a 5W cavity, which is used for home entertainment effect. In addition, it also has five sound modes, such as motion mode, better experience, stimulating, tension.
Data measure:
Projector’s data test We mainly adopt ANSI standards developed by the National Standards Association, which is also a recognized authority standard in the industry. And examine the following aspects: maximum brightness, peak brightness, optimization brightness, and contrast color of the projector. Next, I will briefly explain a few major terms: first is the peak brightness, specifically, in the brightest mode, the highest brightness that can be achieved in the same point, generally appears in the center point; the maximum brightness, refers to the brightest mode The average brightness of the picture can be achieved, the reference value of this value is higher; optimizing the brightness and ANSI brightness, is the average brightness of 9 test points in eight grayscale sitting in the projector.

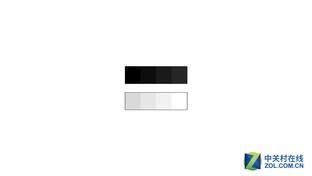

Eight grayscale and 13 digits test points
Two different contrast test methods
data analysis:
About the brightness of the projector, three data in the form is the maximum brightness, peak brightness, and ANSI brightness. Simply, the maximum brightness is the average brightness of the projector in the brightest mode (brightness, contrast, bulb mode to the highest). From the results of our actual test, the BenQ W1130’s ANSI brightness reached 1989. For a household projection, about 2000 lumens of the measured ANSI brightness can meet daily applications.
The peak brightness refers to the maximum value that can be achieved in the screen in the brightest mode. In general, if the peak brightness can be close to 95% of the nominal value or even exceeding the marking value is optimal. From the actual data, the peak brightness of the BenQ W1130 is 2443 lumens, exceeding the nominal 2300 lumen, excellent performance.
Contrast:
In contrast testing, we bring you an ANSI contrast test. ANSI contrast is closer to our daily viewing feeling, we use 16 black and white color blocks to test. From our measured data, the ANSI contrast of BenQ W1130 is 290: 1, such ansi contrast, which belongs to excellent performance in the household projector we have tested.
Color performance
For projectors, color testing is an essential project in conventional testing. This project is mainly through the difference between color test samples and real-shot maps to understand the color of the machine, and some models of projection. The case of larger bias is found after comparing the original map, such as the cool and warmth of color brightness, saturation, tones, etc., the following is a real shot map of our color test.
Left is the test sample, right, real shot map
Through the above set of real shot we can see that BenQ W1130 color restore is relatively accurate, basic and original maps maintain the same color style. The color brightness of the BenQ W1130 is more plentiful, and the color infectivity of the picture is very nice.
It can be seen in the comparison of the four color graphs that the overall reduction of the four colors is high, which is the result of further optimizing the color of the RGBRGB six-stage color wheels.
Screen real shot and HDR function
CinematicColor is the proprietary color tuning technology of BenQ, BenQ Benq has been developed by THX and ISF dual certification engineers, leading color technology expert team, and strives to achieve perfect color consistency. BenQ W1130’s REC.709 color gamut coverage is as high as 95%, and the color of Hollywood movie is loyal. At the same time, BenQ W1130 has HDR functionality, high dynamic ranges can show more dark portions.

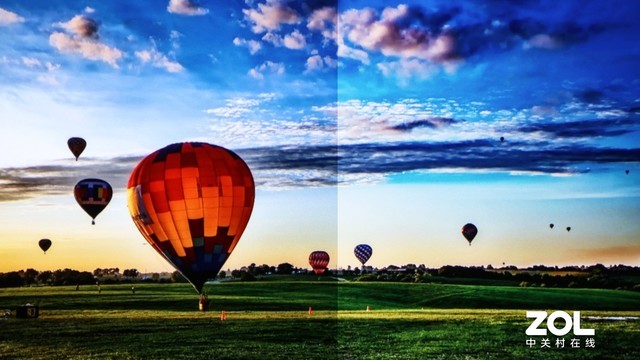

HDR effect comparison (right is the HDR function)
BenQ W1130 skin color restore

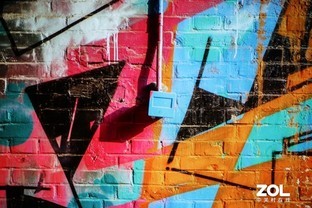

BenQ W1130 shows a rich color is very infectious

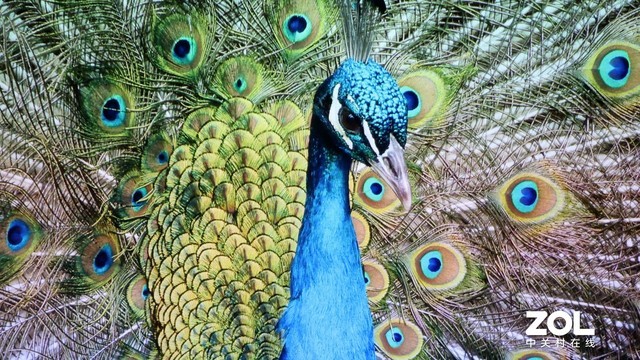

BenQ W1130 detail is clear
BenQ W1130 color is an advantage
BenQ W1130’s blue adjustment is also excellent enough
By real shot, it can be found that the color effect of BenQ W1130 is good. Regardless of the performance, its color maintains the color gamut, the reduction is accurate, and the color brightness is sufficient. For a household projector, the color performance of BenQ W1130 is its advantage.
Evaluation summary:
BenQ W1120 has been very good, based on this product success, BenQ launched the upgrade W1130, so I want to buy a friend who is projected by home, it is better to go in place, choose BenQ W1130, it is worse than W1120 promote. Compared to previous products, BenQ W1130 has better lens performance, which can zoom, while combining a short focal function, with the advantage of ride, can explain that the base W1130 has better adaptability, whether the living room is still Bedrooms can take a large picture.
The color of the BenQ W1130 is also a significant advantage. In the past few years, the BenQ has always been a foothold in color, and CinematicColor color adjustment technology makes the color reduction of this product very accurate, and the color gamut of BenQ W1130 reaches 95% REC.709. The picture is more infectious.
At the same time, BenQ W1130 also has some small surprises, the configuration of the environment sensor, so that the brightness of this product can be automatically adjusted as the environment, so the lighting light can find the optimal state. The HDR function of BenQ W1130 is also worthy of affirmation. The current video of HDR is currently supporting more and more games. This feature is not accessible. In the future applications, HDR features can show more screen details. At the same time, BenQ W1130 also has 120 Hz refresh rate, and has a low delay effect of 8.3ms. For friends who want to play with BenQ W1130, such a configuration makes the screen without tilates.
