On the one hand, the transformation of the Great Wall lies in the marketing side, which has been seen in the naming of various “strange” Great Wall in recent years. Some people say that the Great Wall is gradually lost in the marketing pleasure of “Great Wall Cannon” and “Big Dog”, but in-depth exploration of the technological advancement behind the Great Wall reveals that the crisis and transformation of the Great Wall that Wei Jianjun talked about last year was actually discovered and solved in advance many years ago.
Perhaps when Great Wall released the lemon hybrid platform and coffee intelligent platform, many people were still immersed in the naming of the two, thinking that this was just another “gimmick” marketing of Great Wall. However, in fact, based on Great Wall’s promotion of intelligence, it has been fully demonstrated on the big dog, tank 300 listed last year and Mocha listed this year, and the lemon hybrid platform is about to be applied in Great Wall’s products this year.
On March 2, 2021, Great Wall Motor conducted the world’s first live broadcast of the disassembly of the Lemon Hybrid DHT. This is also the first time that Great Wall has conducted a comprehensive public technical explanation after the debut of the lemon hybrid DHT in December last year. Through this in-depth analysis of its technical advantages, working principle and user experience, consumers have also been able to understand the mystery of the performance of Lemon Hybrid DHT more deeply.
With the rapid growth of new energy vehicles worldwide in 2020, the importance of major car companies to new energy technology has reached an unprecedented height. Although many car companies will set a time node for the vigorous development of pure electric vehicles, according to the analysis of Professor Shuai Shijin, professor of the State Key Laboratory of Automotive Safety and Energy Conservation of Tsinghua University, the “Energy-saving and New Energy Vehicle Technology Roadmap 2.0” released by the state in October last year pointed out in detail the necessity of developing hybrid technology.
From a technical point of view, HEV models that are not included in the list of new energy models, whether in terms of technical level, energy saving, driving control practicality, hybrid models are more suitable as transitional products for the transformation of fuel vehicles. However, the technical blockade of hybrid technology by Japanese car companies represented by Toyota and Honda for a long time has always been an insurmountable gap for independent brands when electrifying overtaking. Therefore, the emergence of Great Wall Lemon Hybrid DHT may be the first time that Chinese car companies have faced technical barriers in the process of automobile development and are expected to achieve a breakthrough.

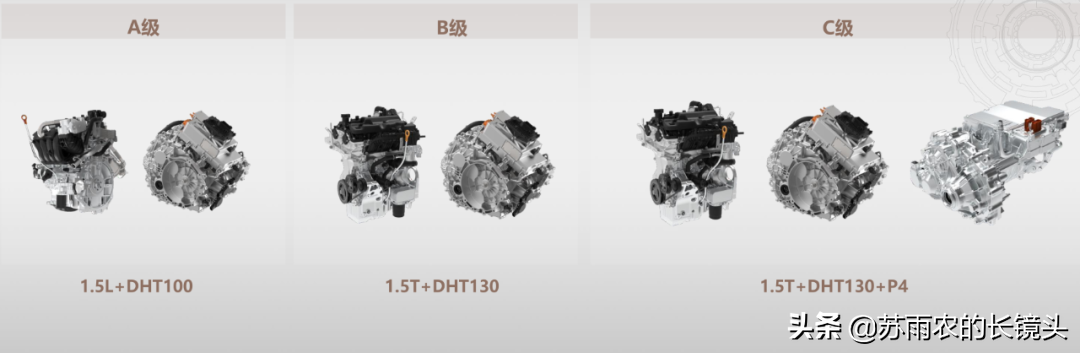

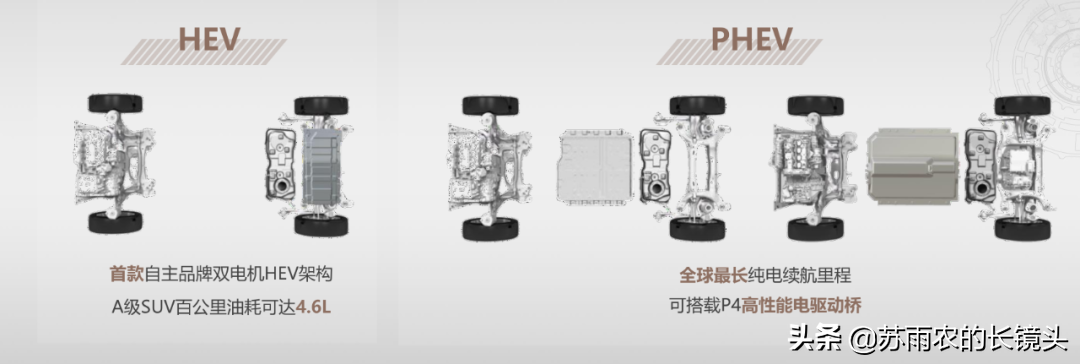

As Great Wall’s self-developed hybrid technology, Lemon Hybrid DHT can achieve excellent performance and efficiency in full-speed domains and scenarios. At the same time, the entire system architecture includes a set of DHT highly integrated gasoline-electric hybrid system, HEV/PHEV two power architectures, and three sets of powertrains for different class models. It is enough to meet the various needs of Great Wall’s models in the development direction of hybrid technology.

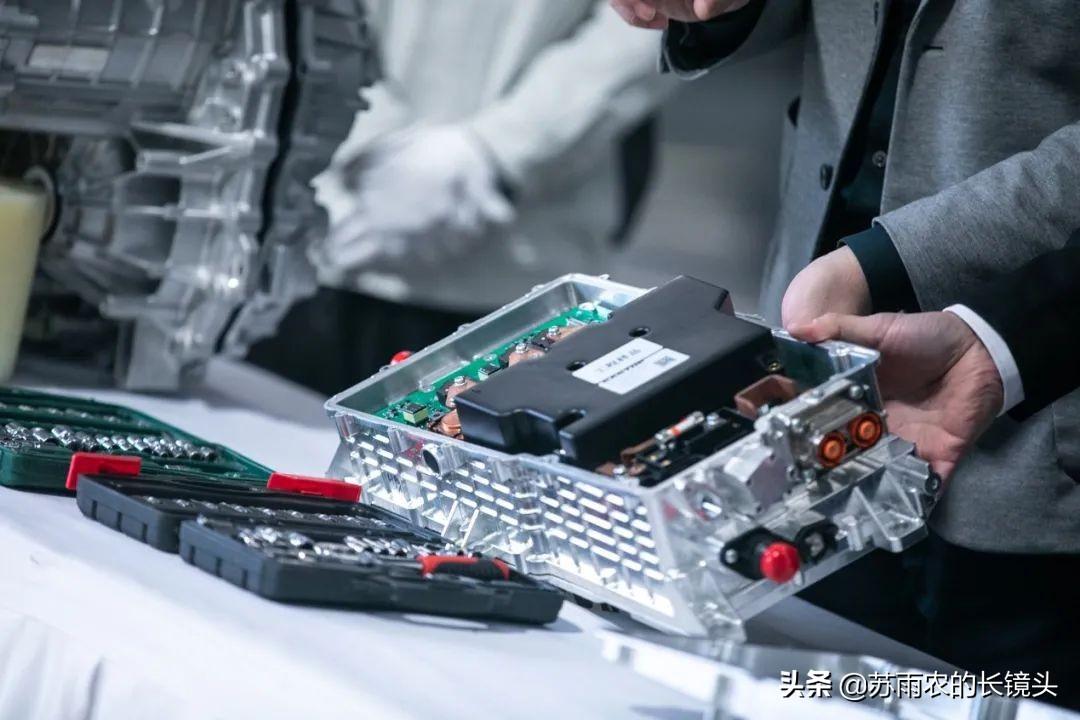

Dual motor controller
In terms of design structure, the Lemon Hybrid DHT consists of key modules such as 1.5L/1.5T hybrid special engine, dual motor controller, DHT module, and high-specification power battery. Among them, as the “brain” of the entire hybrid system, the dual motor controller in DHT is equipped with a new generation of high computing power Infineon TC38 series processor chips, high computing power and reliability, coupled with Great Wall’s self-developed control algorithm, the entire hybrid system can achieve the optimal system energy flow control.

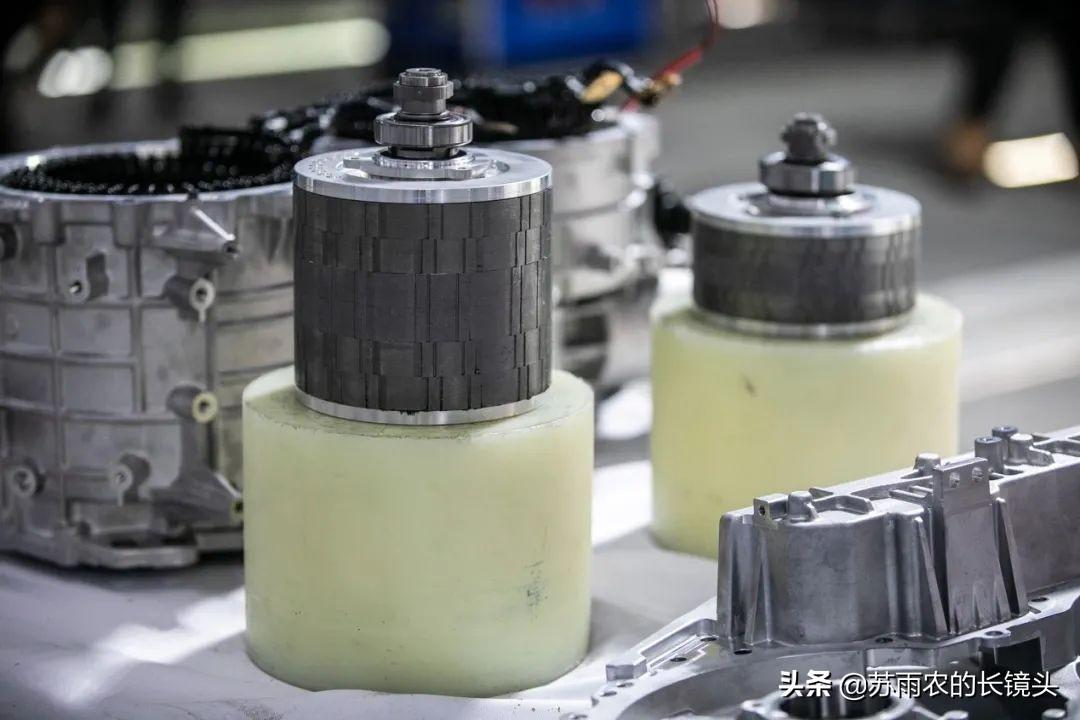

Dual motors
The DHT module, which includes the reducer, clutch, gear shift mechanism and dual motors, reduces the structural space of the entire hybrid module transmission system by 50% with a high degree of integrated thinking. As a result, the wide adaptability of hybrid modules can be improved.

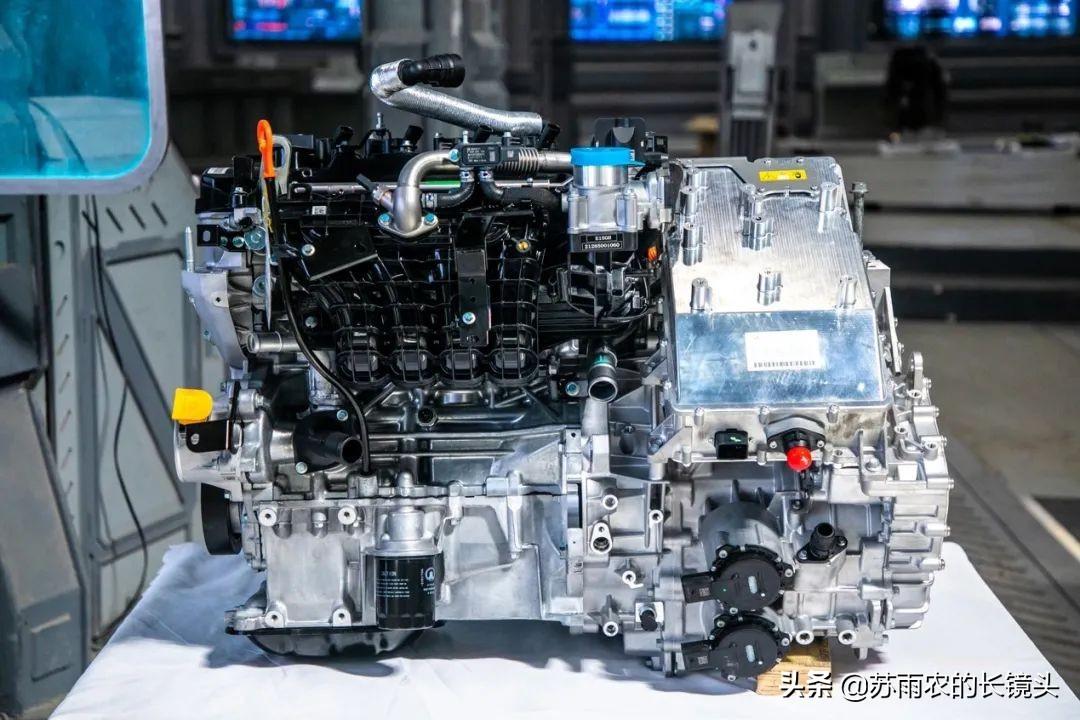

DHT module
At the same time, in the DHT module, Great Wall also adopts a number of optimization schemes to improve the driving quality for users. For example, the motor adopts the high reluctance torque design concept, which reduces the amount of magnet by more than 20% to achieve light weight; Short winding arrangement improves 48th and 96th order high-frequency noise to optimize NVH performance.
In the engine module, the DHT architecture will provide two hybrid special engines of 1.5L/1.5T, of which the maximum power of the 1.5L engine is 75kW, matching the 100kW DHT module, and the comprehensive power of the system is 140-170kW; The maximum power of the 1.5T engine is 115kW, and the combined power of the system will reach 180-240kW when matched with the 130kW DHT module.
In addition to the promotion of HEVs, DHT has also made practical upgrades to the PHEV architecture, which has grown rapidly this year. In the future, Great Wall’s PHEV models will be equipped with high-specification power batteries with an energy density of more than 160Wh/kg and a pure electric cruising range of up to 200km.
Back to the perspective of the market, the new energy market is booming, in exchange for more opportunities for car companies that seize the transformation opportunity, and with it, there is also a further tightening of new energy subsidy policies such as the “Shanghai Implementation Measures for Encouraging the Purchase and Use of New Energy Vehicles” the day before. When the development direction of new energy in the future is likely to change again, now the range extension has been marginalized in the policy. Under this circumstance, once not recognized by the policy, but recognized by many overseas car companies as a necessary technology for the transition from fuel to pure electric – HEV power form, whether it can become a new direction of domestic new energy, perhaps when the Great Wall’s DHT gradually breaks the Japanese hybrid technical barrier, this question has no need to answer.

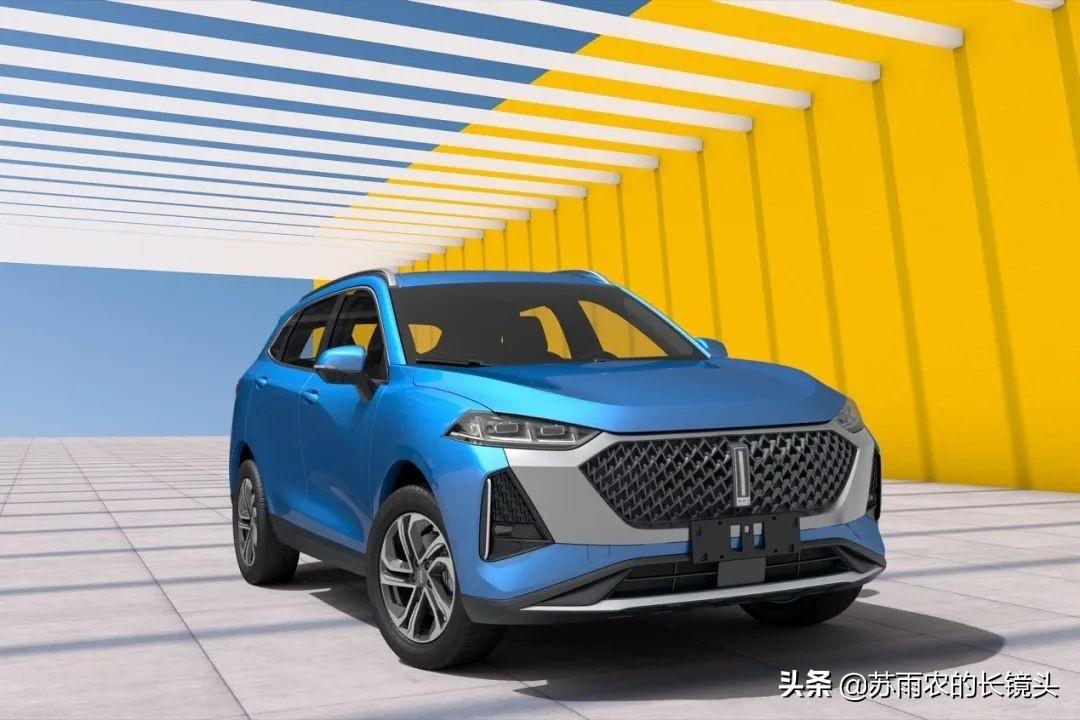

At the end of the press conference, Song Dongxian, vice president of technology of Great Wall Motor, also broke the news that a small Easter egg, that is, the DHT system will be first installed in WEY brand models. It is reported that in this new WEY brand compact SUV after Mocha, its fuel consumption level is expected to be as low as 4.7L/100km, and whether this car will be the WEY Macchiato exposed in the previous declaration of the Ministry of Industry and Information Technology is worth looking forward to this year.
